Description

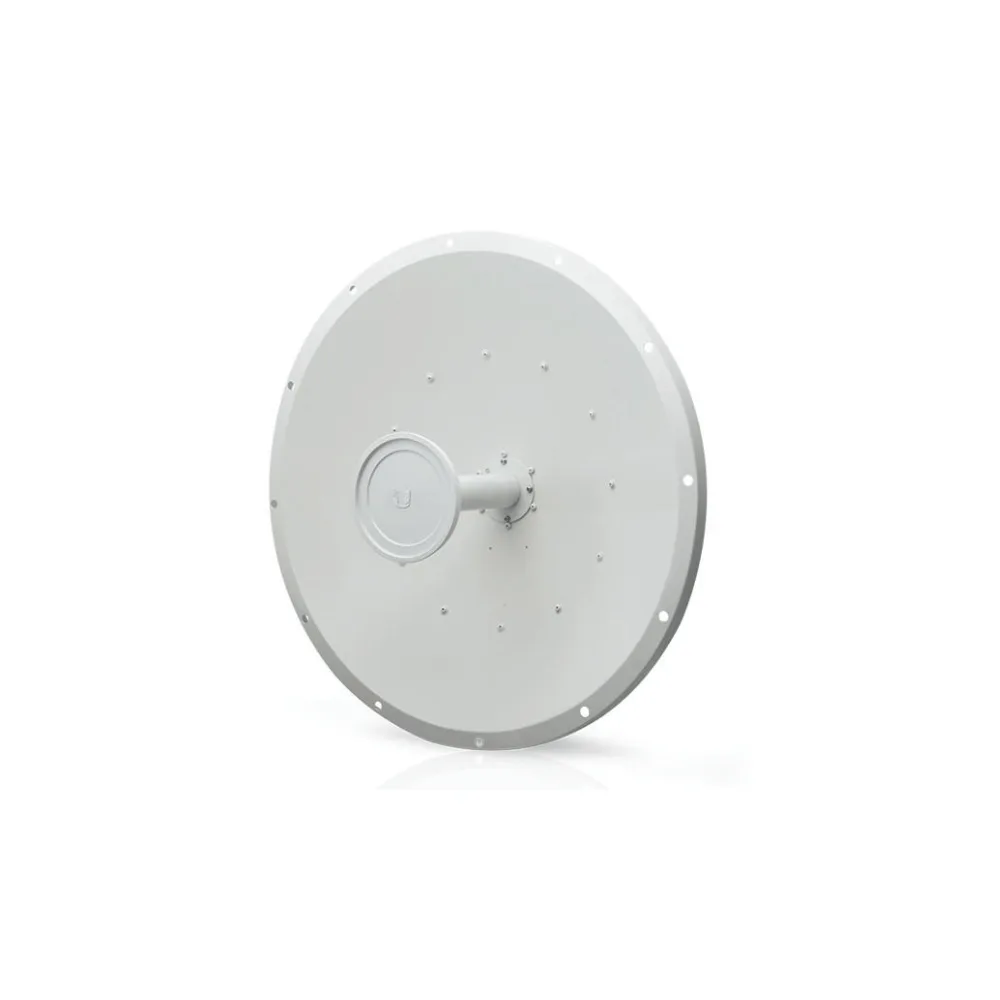

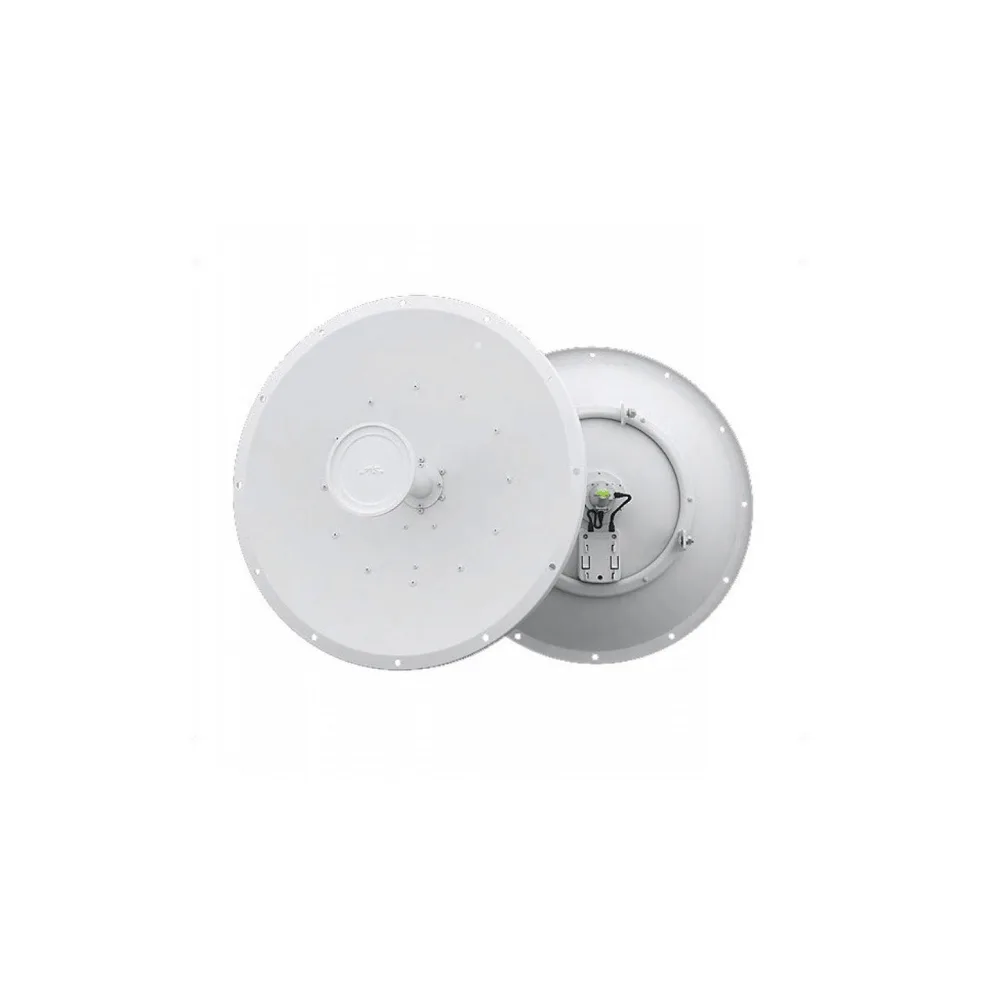

The Ubiquiti airMAX RocketDish RD-5G30 is a professional 5GHz high-gain directional dish antenna designed for long-range wireless networking, point-to-point connectivity and outdoor wireless backhaul applications. With up to 30dBi gain across the 5GHz range, it provides a focused wireless beam for establishing reliable long-distance links.
The RD-5G30 features dual-linear polarization and approximately 5° beamwidth, helping concentrate the wireless signal between two locations while reducing unwanted interference from surrounding wireless networks. It is well suited for building-to-building connections, ISP backhaul and other demanding outdoor wireless deployments.
The antenna operates from 4.9 to 5.8GHz, with 26dBi gain at 4.9GHz and up to 30dBi from 5 to 5.8GHz. It includes a universal pole mount, Rocket bracket and weatherproof RF connectors, making it suitable for installation with compatible Ubiquiti Rocket radios.
- 5GHz airMAX RocketDish antenna
- Up to 30dBi gain
- 650mm × 650mm dish
- Dual-linear polarization
- Approximately 5° beamwidth
- 34dB front-to-back ratio
- 35dB minimum cross-polarization isolation

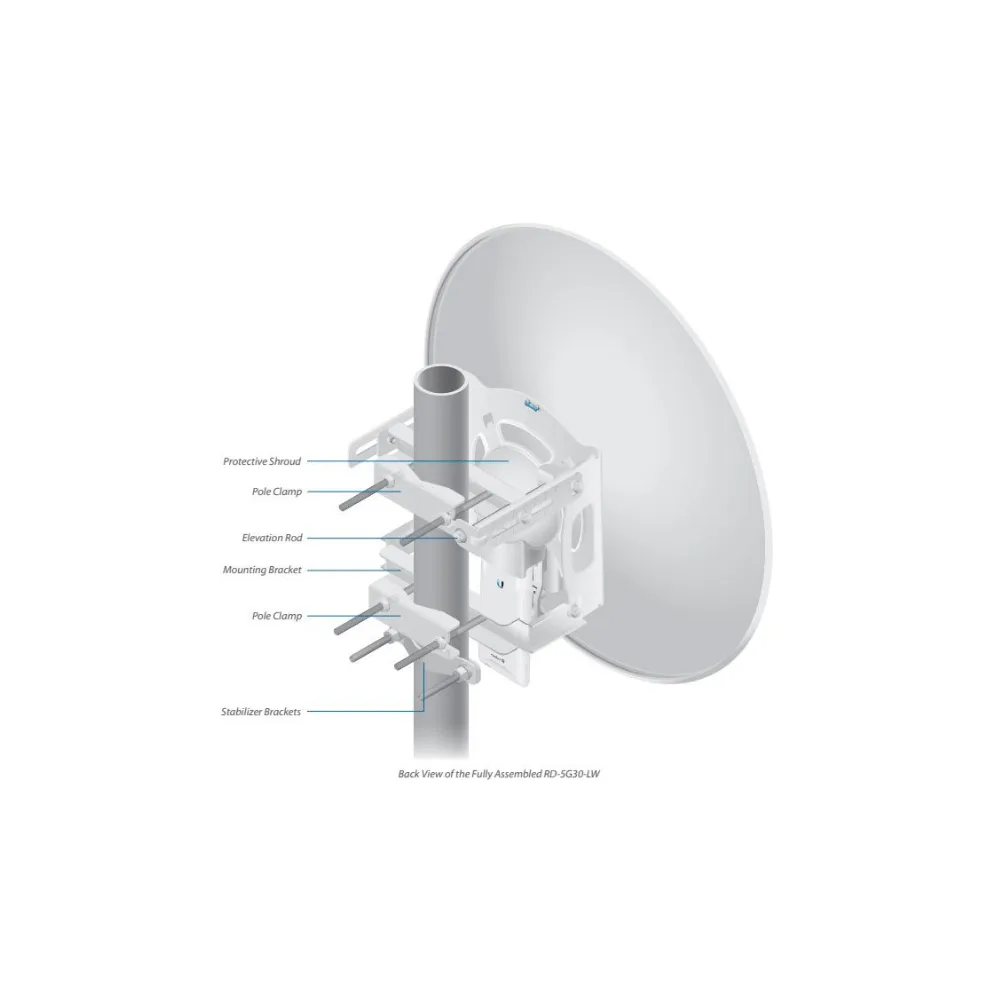

- Universal pole mounting
- Rocket bracket included
- Weatherproof RF connectors included
- Designed for long-range PtP wireless links
- Wind survivability up to 200km/h
