Description
The Ubiquiti RocketDish 5G-30 Light Weight (RD-5G30-LW) is a professional 5GHz 30dBi directional dish antenna designed for long-range wireless backhaul, point-to-point connectivity and high-capacity outdoor network deployments.
Featuring a 30dBi gain and narrow 5.8° horizontal and vertical beamwidth, the RocketDish focuses the wireless signal in a highly directional pattern, helping establish stable long-distance links while reducing unwanted interference. It uses dual-linear polarization and provides a minimum 35dB cross-polarization isolation for improved signal separation.
The lightweight construction makes the RD-5G30-LW easier to handle and install compared with larger traditional dish antennas. It includes a universal pole mount, Rocket bracket and weatherproof RF connectors, allowing it to be paired with compatible Ubiquiti Rocket radios for a complete outdoor wireless link.
With support for the 5.1–5.9GHz frequency range, a 30dB front-to-back ratio and wind survivability up to 200km/h, the RocketDish 5G-30 Light Weight is suitable for demanding outdoor wireless infrastructure, ISP backhaul and building-to-building network connections.
- 5GHz airMAX directional dish antenna
- 30dBi high antenna gain
- Lightweight design
- 5.1–5.9GHz frequency range
- 5.8° horizontal beamwidth
- 5.8° vertical beamwidth
- Dual-linear polarization
- 35dB minimum cross-polarization isolation
- 30dB front-to-back ratio

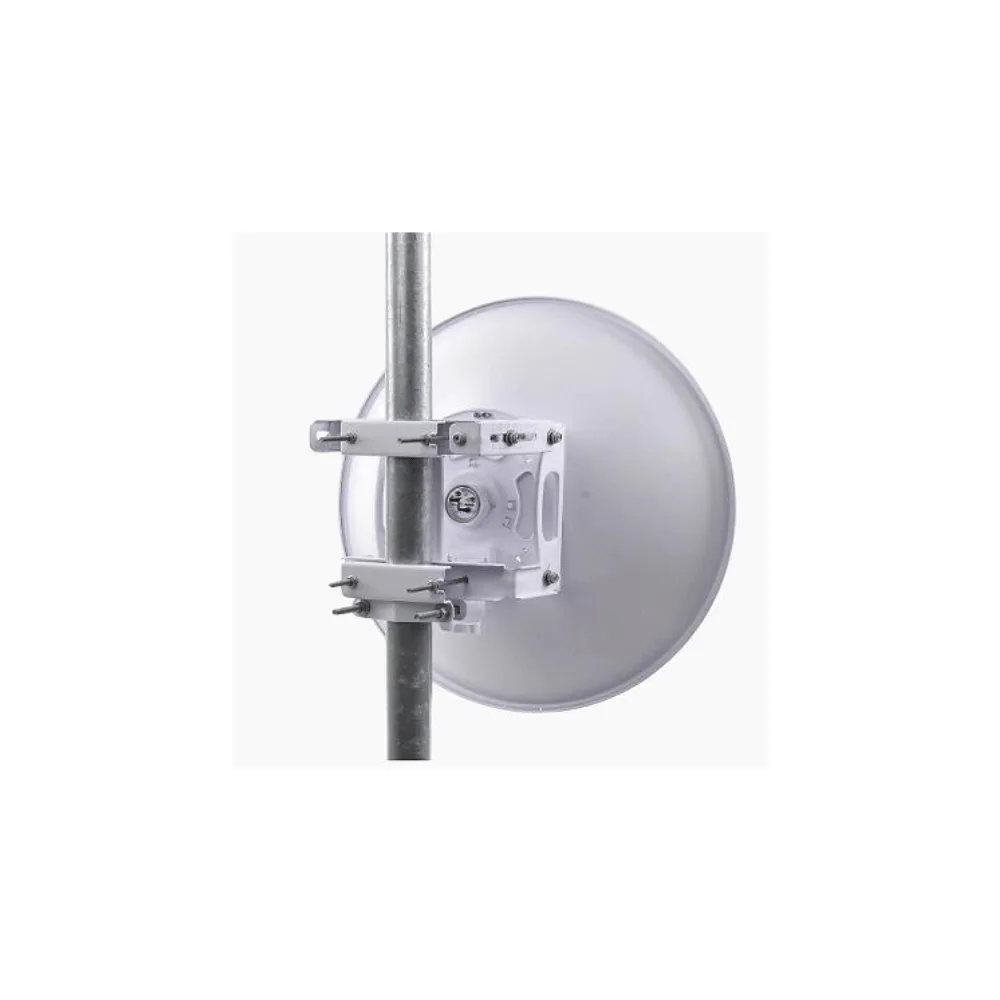

- Universal pole mount
- Rocket bracket included
- Weatherproof RF connectors included
- Up to 200km/h wind survivability
- Designed for long-range PtP wireless links
