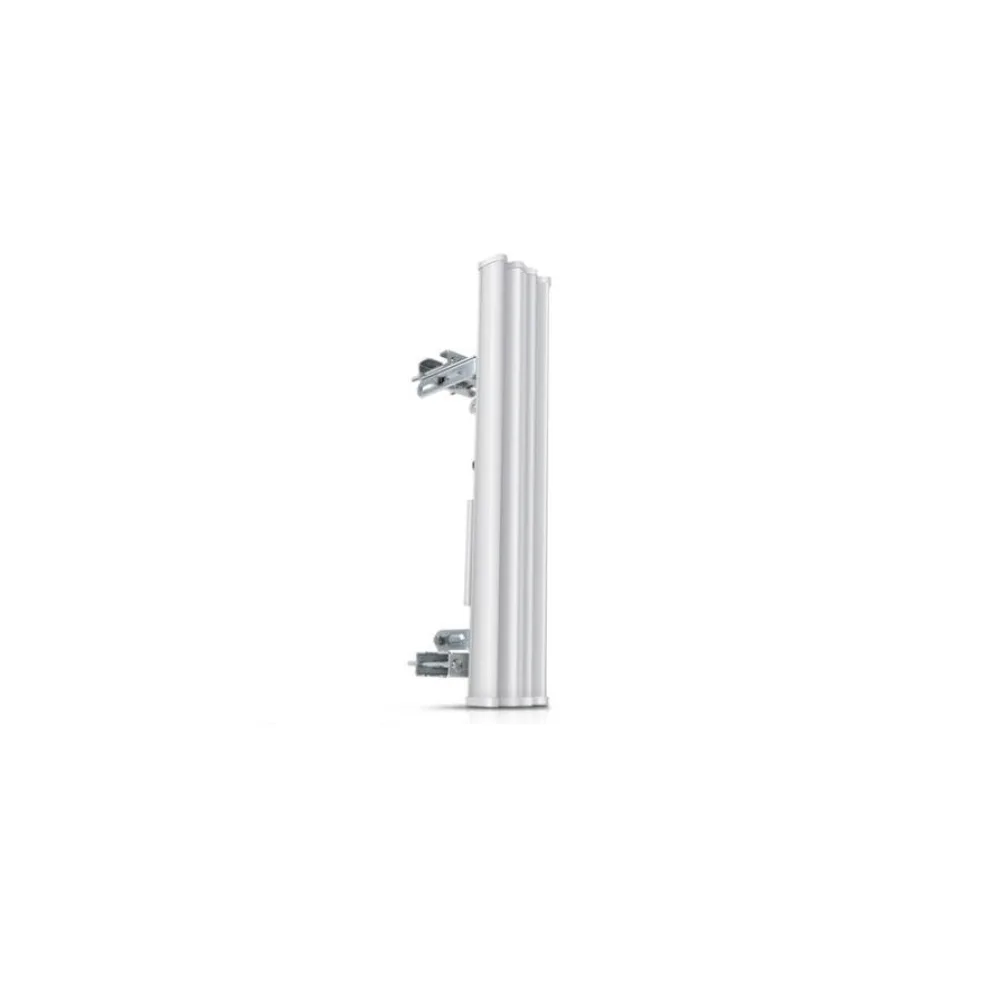

The Ubiquiti airMAX AM-5G20-90 is a high-gain 5 GHz sector antenna designed for professional outdoor wireless networking and ISP deployments. It works together with compatible Ubiquiti Rocket radios to create a reliable 2×2 MIMO BaseStation for Point-to-MultiPoint wireless networks.
With a gain of 19.4–20.3 dBi and approximately 90° horizontal coverage, the AM-5G20-90 provides focused sector coverage while helping wireless operators efficiently serve multiple client devices from a central BaseStation. It features dual-linear polarization, 4° elevation beamwidth and 2° electrical downtilt.

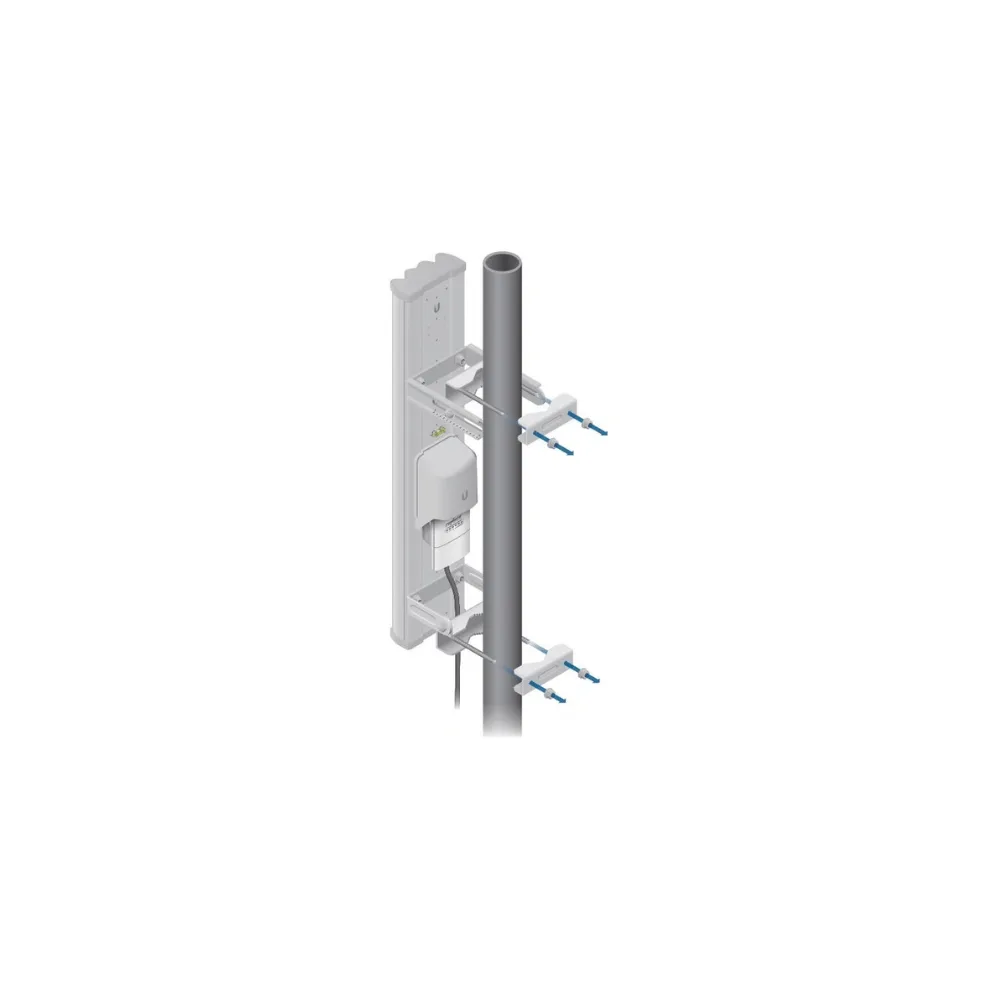

The antenna operates across the 5.15–5.85 GHz frequency range and is built for demanding outdoor installations. Its rugged construction provides wind survivability up to 200 km/h, while the included pole-mount hardware, Rocket bracket and weatherproof RF jumpers simplify installation.
The AM-5G20-90 is suitable for wireless ISP networks, outdoor broadband distribution, enterprise backhaul and other high-capacity PtMP deployments where controlled sector coverage is required.
- 5 GHz 2×2 MIMO BaseStation sector antenna
- 19.4–20.3 dBi gain
- Approximately 90° sector coverage
- Dual-linear polarization
- 4° elevation beamwidth
- 2° electrical downtilt
- 5.15–5.85 GHz frequency range
- Designed for Rocket M5 / RocketM5 GPS
- Weatherproof RF jumpers included
- Universal pole mounting
- Wind survivability up to 200 km/h
- Suitable for PtMP wireless ISP deployments
