Description

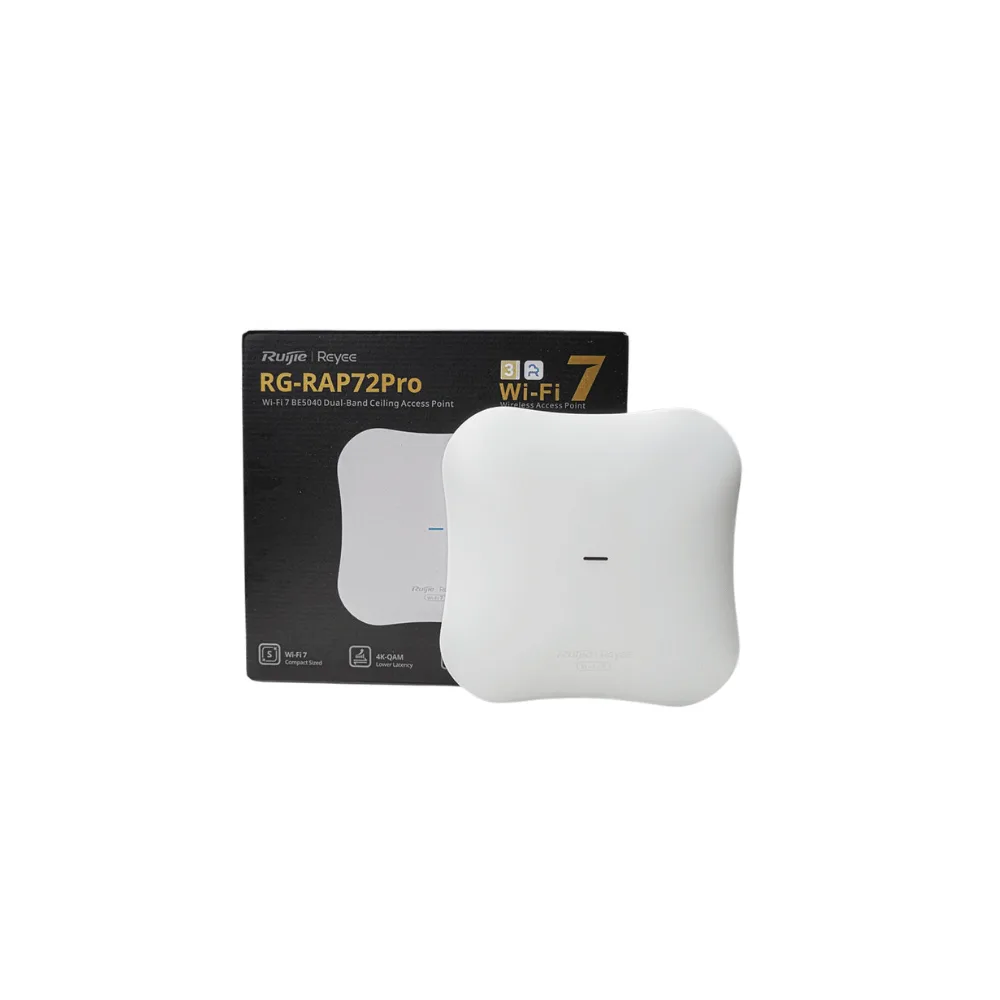

The Ruijie Reyee RG-RAP72Pro is a next-generation Wi-Fi 7 BE5000 dual-band ceiling access point designed for businesses, hotels, offices, commercial environments and other networks requiring high-speed and reliable wireless connectivity. With a maximum theoretical wireless rate of 5011 Mbps, the RG-RAP72Pro provides the performance needed for high-bandwidth applications, large numbers of connected devices, video conferencing, cloud applications, high-resolution streaming and modern business networking.
The RG-RAP72Pro operates across the 2.4GHz and 5GHz frequency bands. It provides up to 688 Mbps on 2.4GHz and up to 4323 Mbps on 5GHz, using 2×2 MU-MIMO on 2.4GHz and 3×3 MU-MIMO on 5GHz. This five-spatial-stream design provides greater wireless capacity and helps the access point efficiently serve multiple compatible devices simultaneously.
As a Wi-Fi 7 access point, the RG-RAP72Pro supports advanced technologies including Multi-Link Operation (MLO) and 4K-QAM. MLO allows compatible devices to utilize multiple wireless links, while 4K-QAM increases data transmission efficiency. Together, these technologies are designed to provide higher throughput and improved wireless performance for demanding applications.
- Wi-Fi 7 BE5000 dual-band access point
- Maximum wireless rate up to 5011 Mbps
- 2.4GHz up to 688 Mbps
- 5GHz up to 4323 Mbps
- 2×2 MU-MIMO on 2.4GHz
- 3×3 MU-MIMO on 5GHz
- 5 spatial streams
- Multi-Link Operation (MLO)
- 4K-QAM support
- 1 × 2.5GbE Ethernet port
- 1 × Gigabit Ethernet port
- PoE/PoE+ and DC power support
- Reyee Mesh
- Ruijie Cloud management
- Built-in omnidirectional antennas
- Supports up to 511 wireless clients

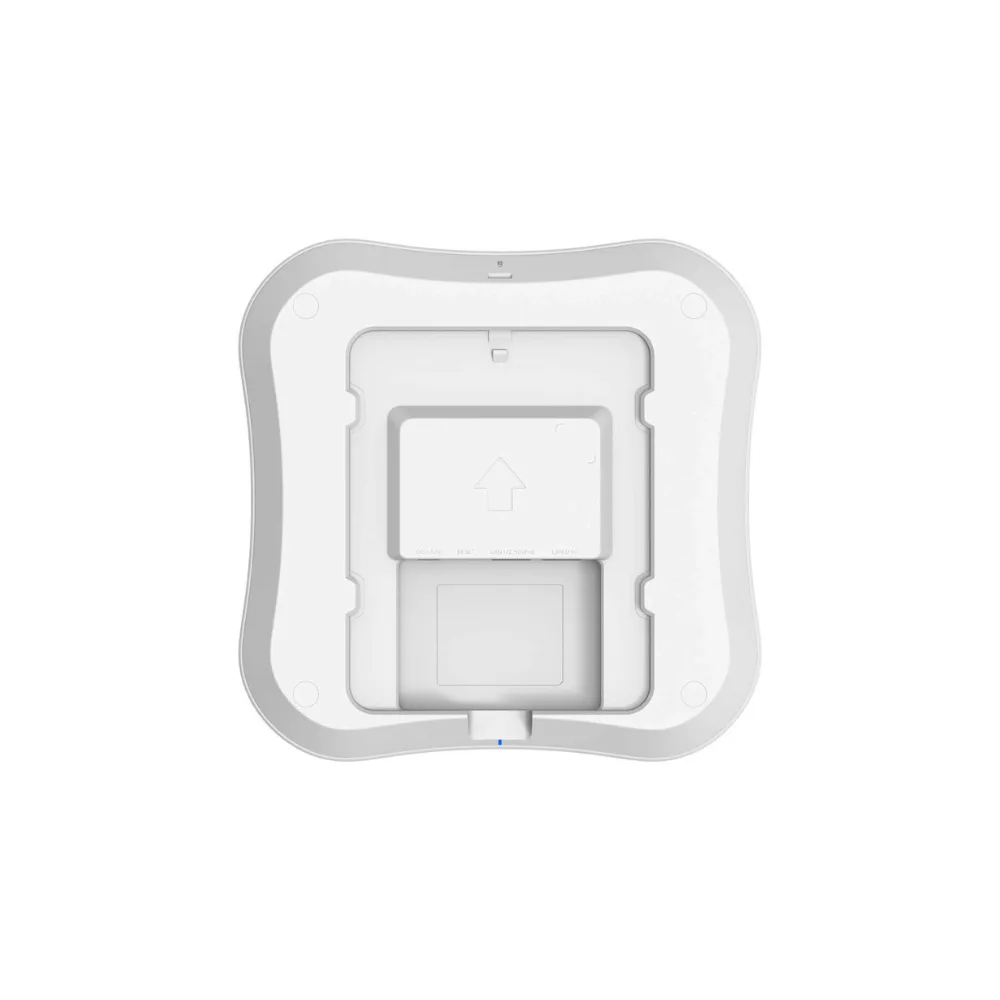

- Ceiling/wall mounting

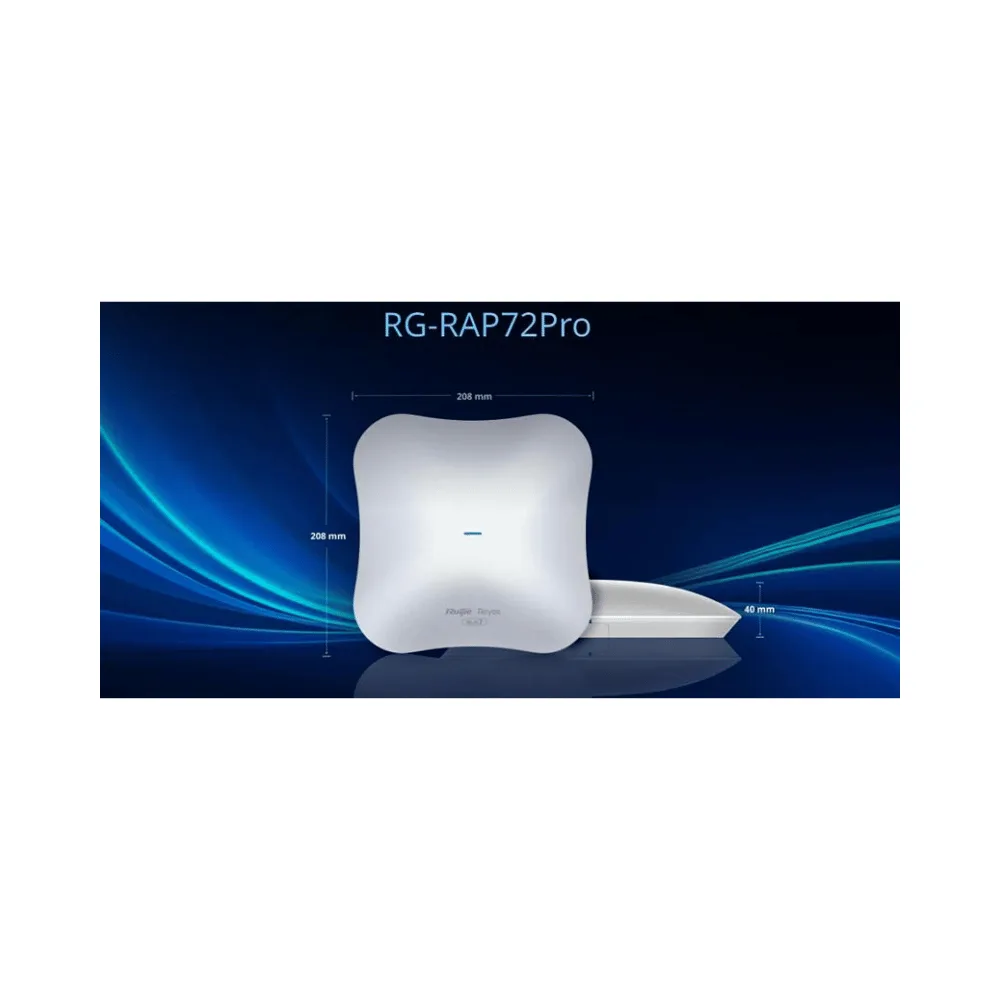

- Compact professional design
- IPv6 support
- Ideal for offices, hotels and business networks
