Description

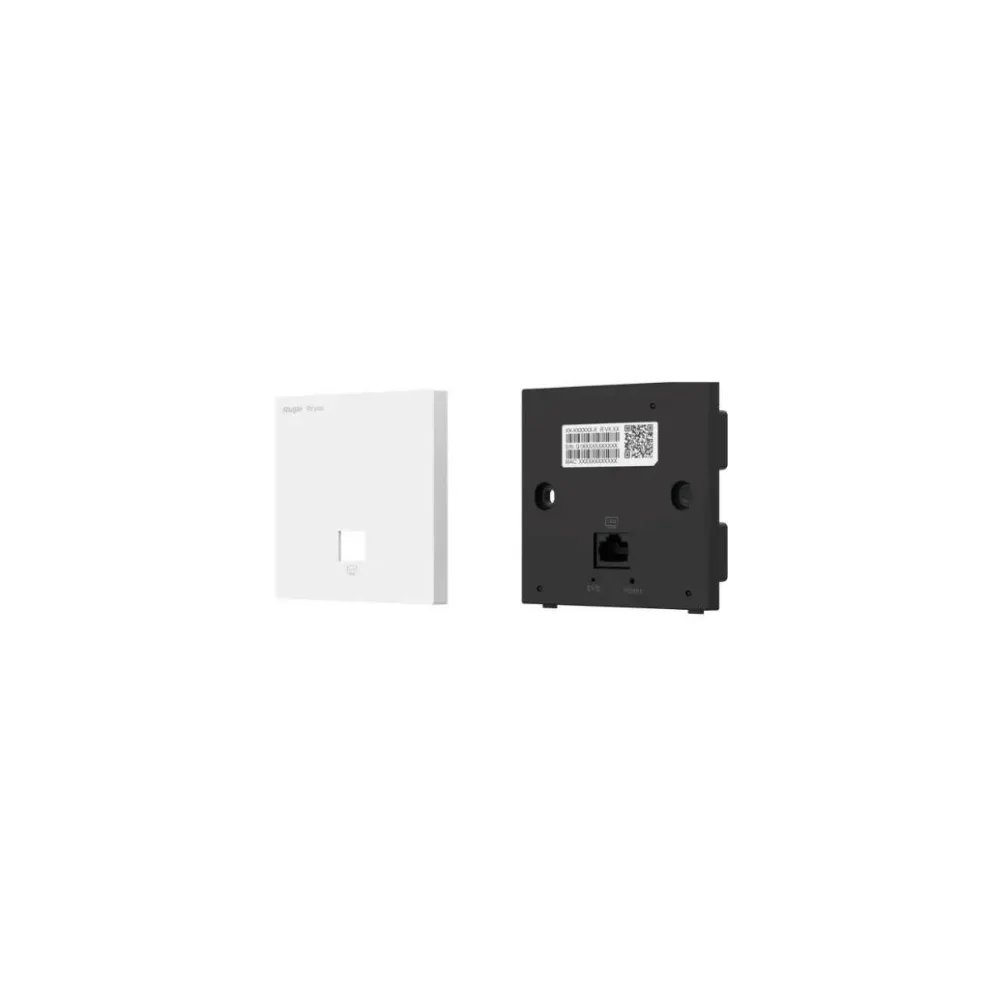

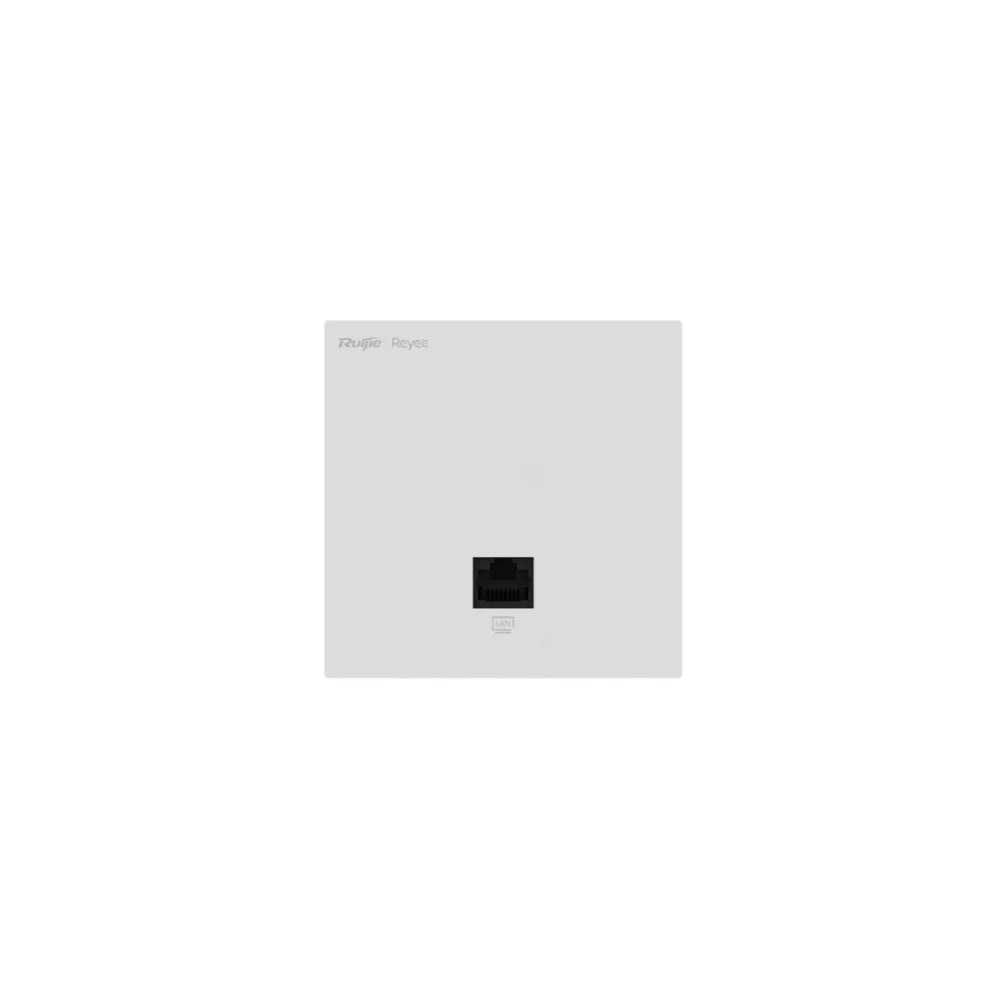

The Ruijie Reyee RG-RAP1201 is a professional Wi-Fi 5 dual-band Gigabit wall-mounted access point designed for reliable wireless connectivity in hotels, offices, apartments, homes, dormitories, retail environments and other indoor locations. Its compact wall-mounted form factor allows it to be installed neatly on compatible junction boxes while maintaining a clean and discreet appearance.
The RG-RAP1201 uses a dual-radio 2×2 MIMO architecture with four spatial streams. It provides up to 400 Mbps on the 2.4GHz band and 866 Mbps on the 5GHz band, delivering a combined theoretical wireless rate of 1266 Mbps. MU-MIMO technology improves wireless efficiency when multiple compatible devices are connected simultaneously.
For wired connectivity, the RG-RAP1201 provides 2 × 10/100/1000BASE-T Gigabit Ethernet ports. The access point is powered through PoE/PoE+, allowing power and network data to be delivered through Ethernet without requiring a local DC power adapter. Maximum power consumption is only 9W, making it efficient for continuous indoor operation.
The built-in omnidirectional antennas provide wireless coverage across the 2.4GHz and 5GHz bands. The access point also supports wireless optimization and roaming features designed to provide a smoother experience across compatible multi-AP networks.
The Reyee Mesh and Self-Organizing Network (SON) capabilities simplify the deployment of multiple compatible access points. Network administrators can configure and manage the wireless network through the Ruijie Cloud platform, including centralized management, remote monitoring and cloud portal authentication.
- Wi-Fi 5 / IEEE 802.11ac Wave 2
- Dual-band 2.4GHz + 5GHz
- Up to 1266 Mbps combined wireless speed
- 2.4GHz up to 400 Mbps
- 5GHz up to 866 Mbps
- 2×2 MIMO on both bands
- MU-MIMO support
- 2 × Gigabit Ethernet ports
- PoE / PoE+ powered
- Built-in omnidirectional antennas
- Reyee Mesh
- Self-Organizing Network (SON)
- Ruijie Cloud management
- Cloud portal authentication
- Remote monitoring and maintenance
- Compact 86mm wall-mounted design
- Junction-box installation
- IP41 rating
- Up to 110 associated clients
- 9W maximum power consumption
