Description

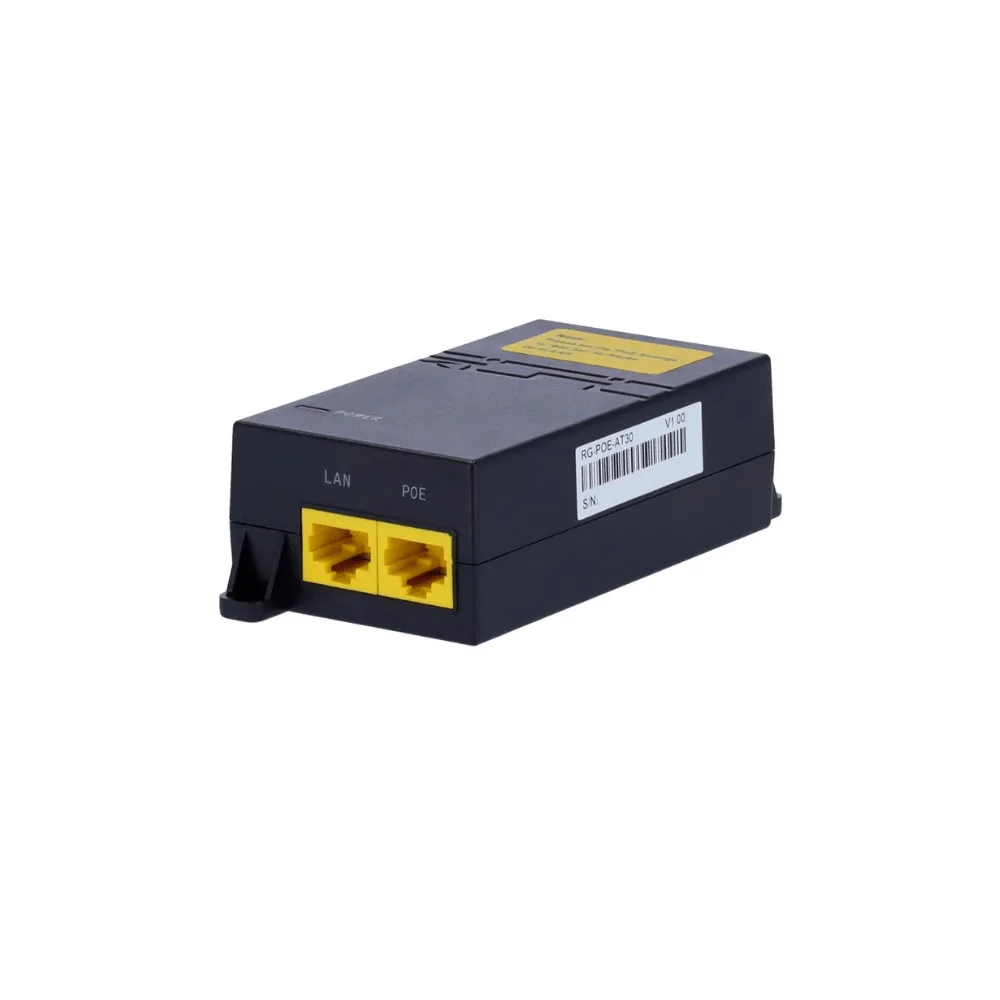

The RG-POE-AT30 provides both network data and power over a single Ethernet cable, making it useful when a PoE switch is not available. It features a 1000Base-T Ethernet interface, 52V DC output at 0.6A, and supports a wide 100–240V AC input range.

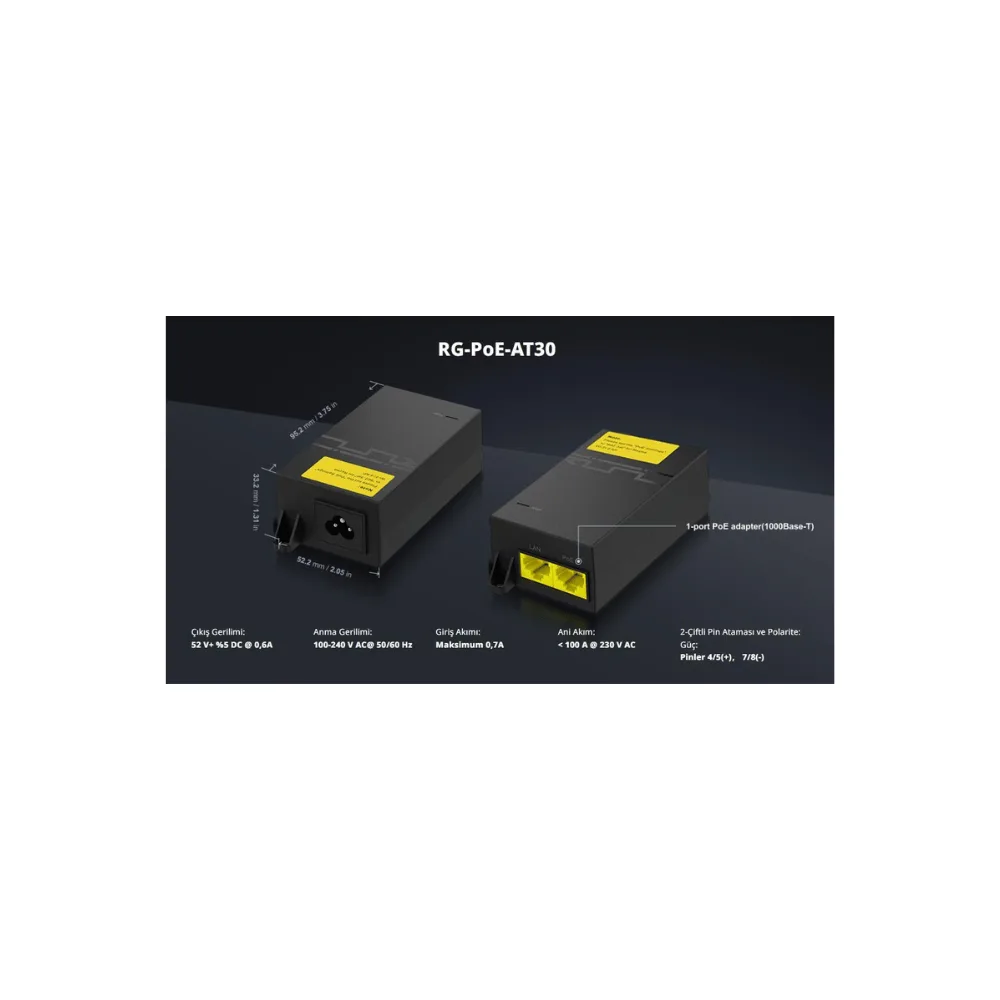

The injector uses 2-pair passive PoE, with power delivered through pins 4/5 (+) and 7/8 (-). Ruijie lists compatibility with several Reyee access points, including the RG-RAP2200(E), RG-RAP2260(G), RG-RAP2266 and RG-RAP6260(G).
- 1-Port Gigabit PoE Injector
- 1000Base-T Ethernet
- 31.2W PoE output
- 52V DC output
- 0.6A output current
- 100–240V AC input
- 50/60Hz input frequency
- 2-pair passive PoE
- Wide operating temperature: -10°C to +45°C
- High surge protection
- Compact design
- Suitable for compatible Ruijie/Reyee access points
- 3-year warranty
