Description

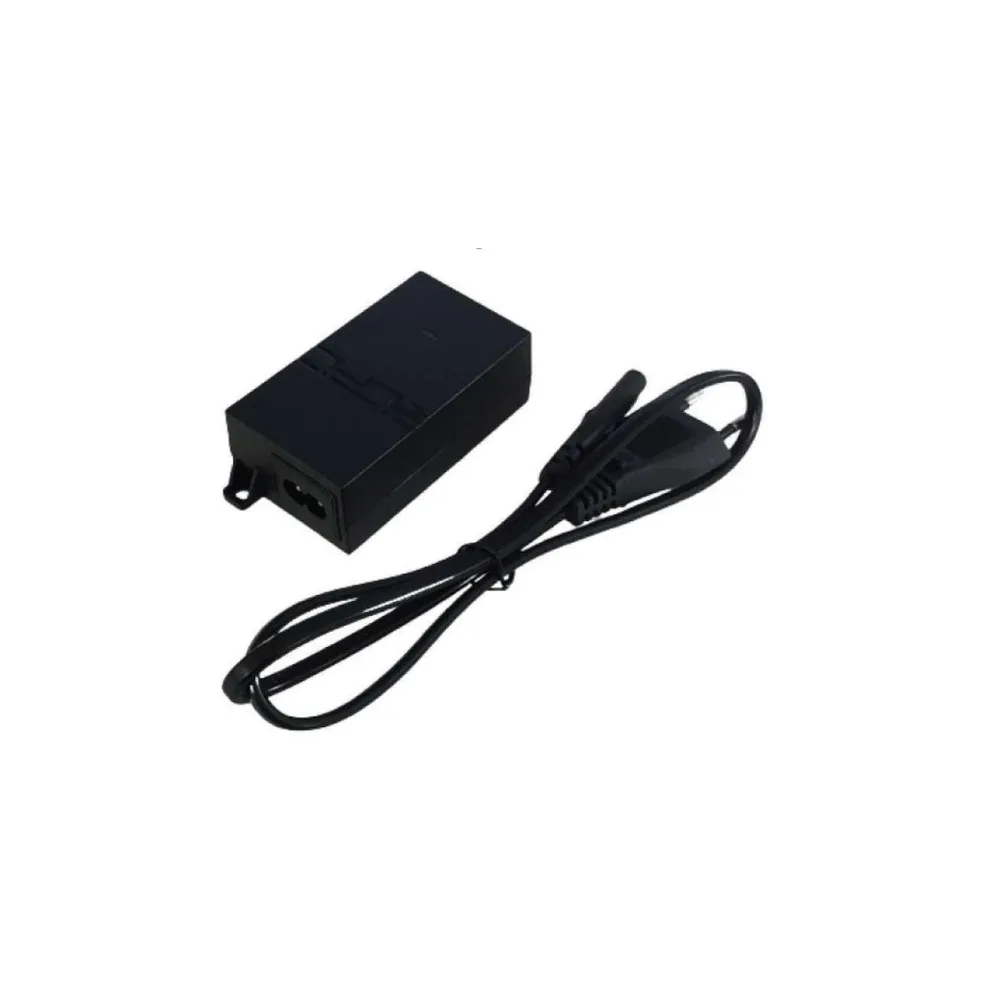

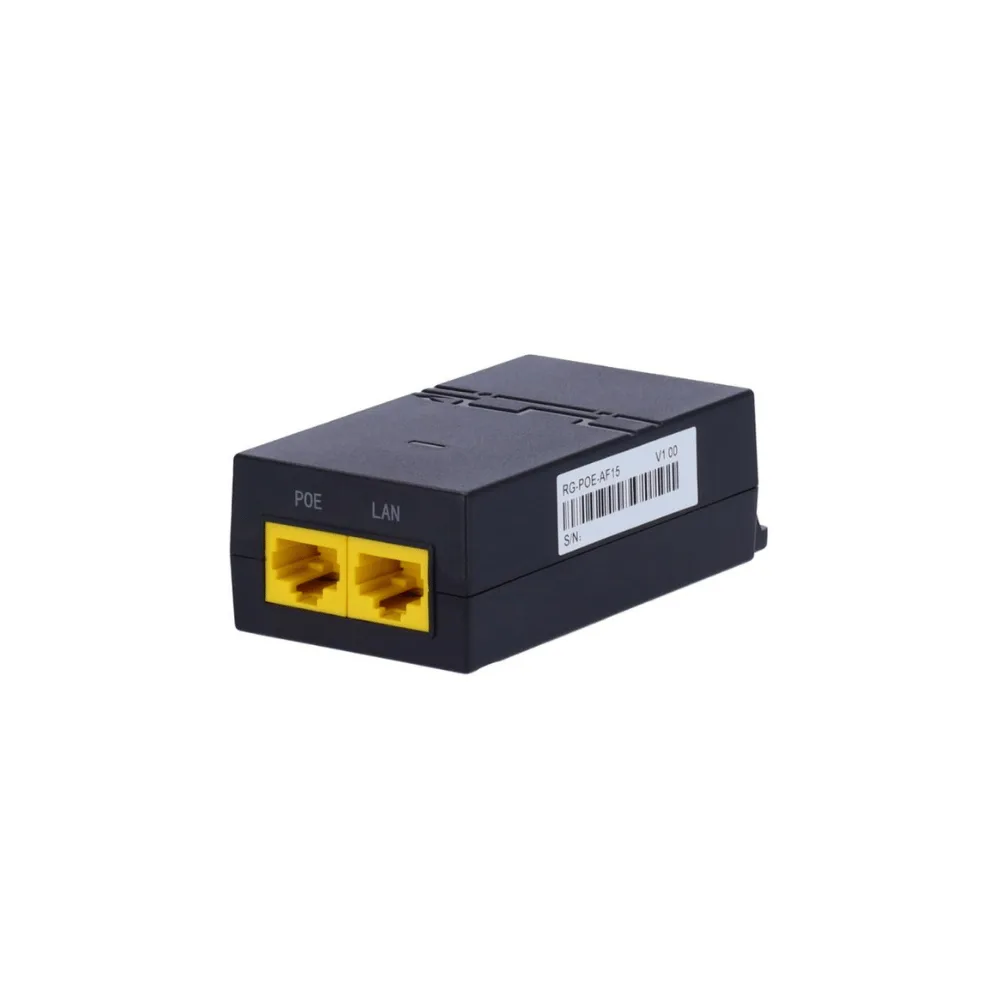

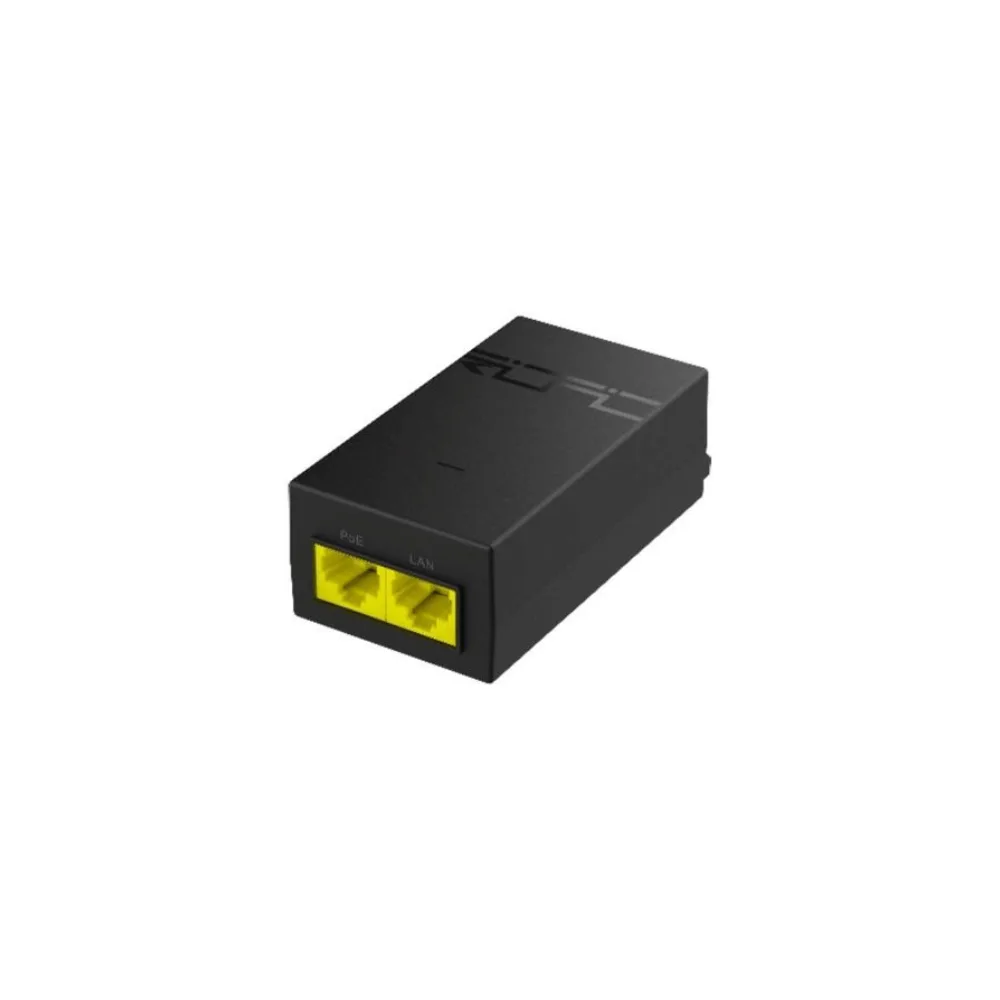

The RG-POE-AF15 provides a simple way to supply both Ethernet data and power to a compatible access point through a single network cable. It is particularly useful where a PoE switch is not available.
The injector supports 1000Base-T Gigabit Ethernet and delivers 52V DC at 0.3A, providing up to 15.6W of passive PoE power. It uses 2-pair power delivery through pins 4/5 (+) and 7/8 (-).
Ruijie specifies an operating temperature range of -10°C to +45°C and high surge protection. Compatible devices listed by Ruijie include selected RG-RAP1200, RG-RAP1201, RG-RAP2200 and RG-RAP6202(G) access points.
- 1-port Gigabit PoE injector
- 1000Base-T Ethernet
- 15.6W maximum output
- 52V DC @ 0.3A
- Passive PoE
- 100–240V AC input
- 50/60Hz input frequency
- 2-pair power delivery
- High surge protection
- -10°C to +45°C operating temperature
- Suitable for compatible Ruijie Reyee access points
- Compact standalone power solution
- 3-year warranty according to Ruijie’s warranty summary
