Description

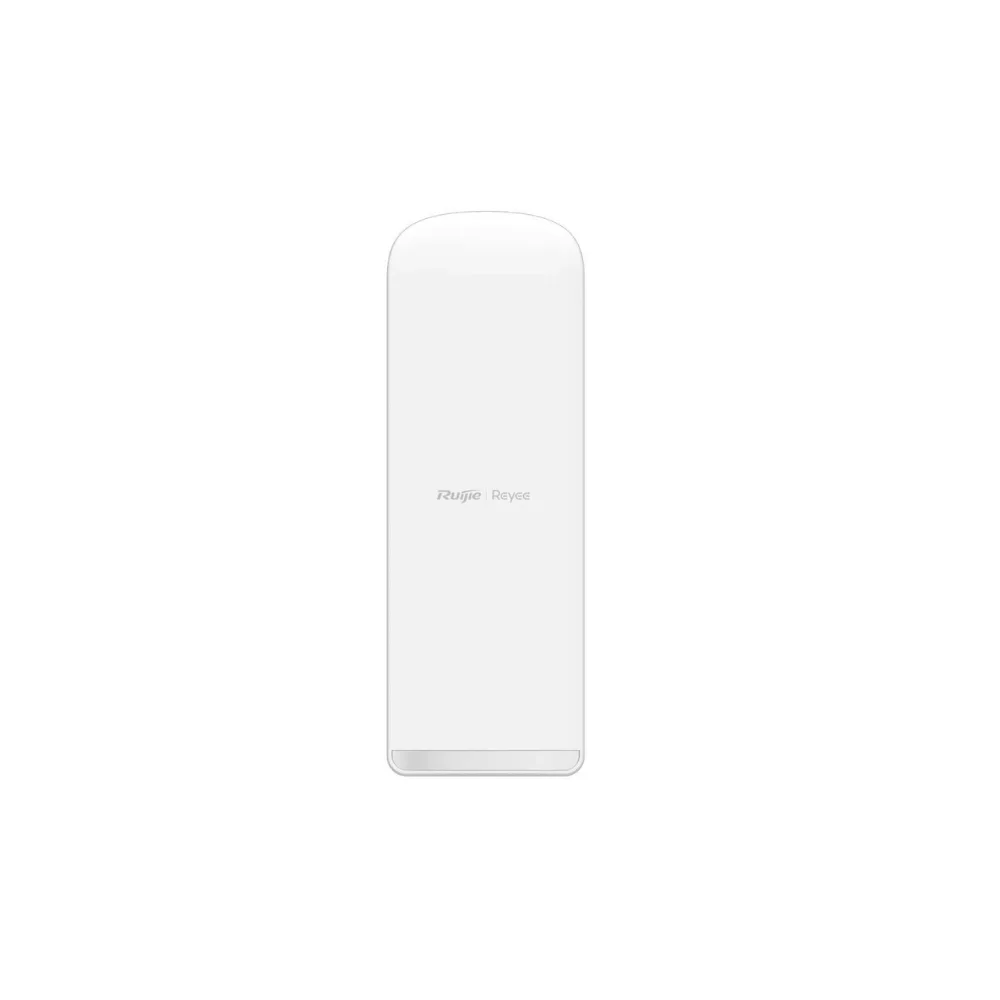

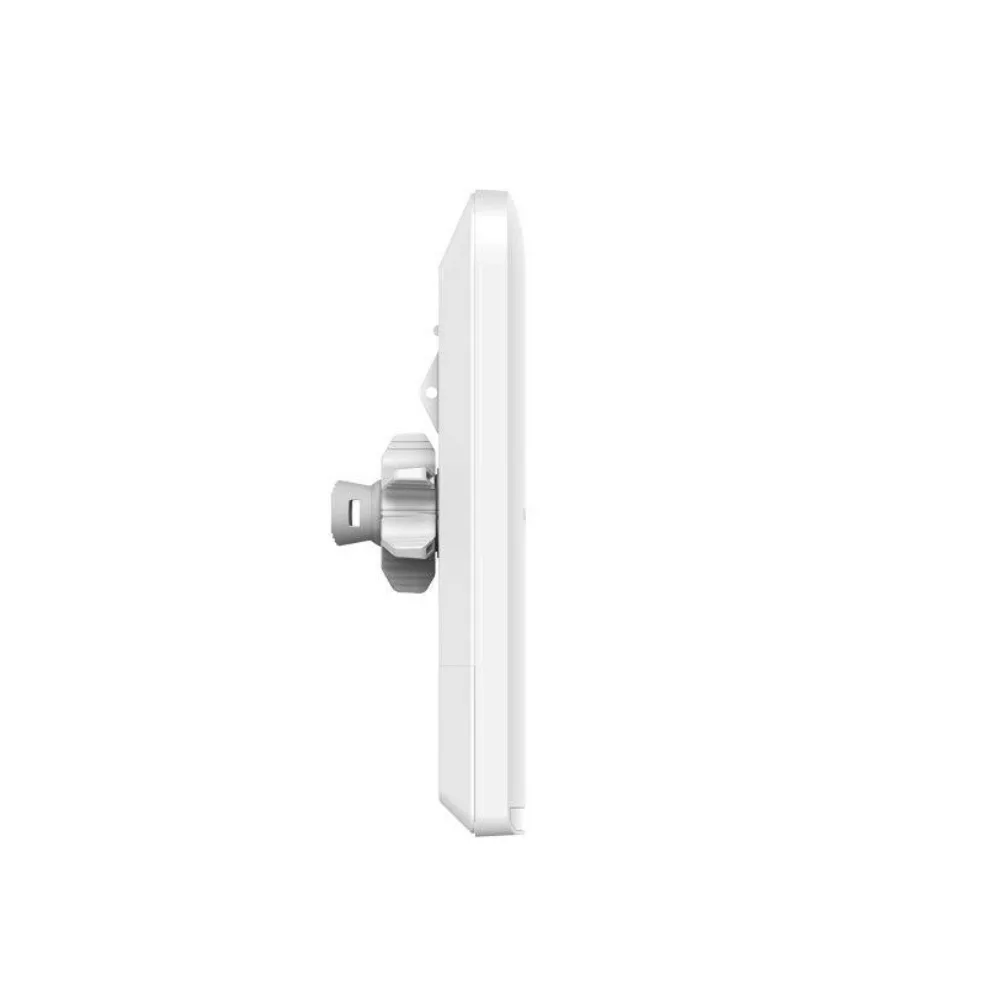

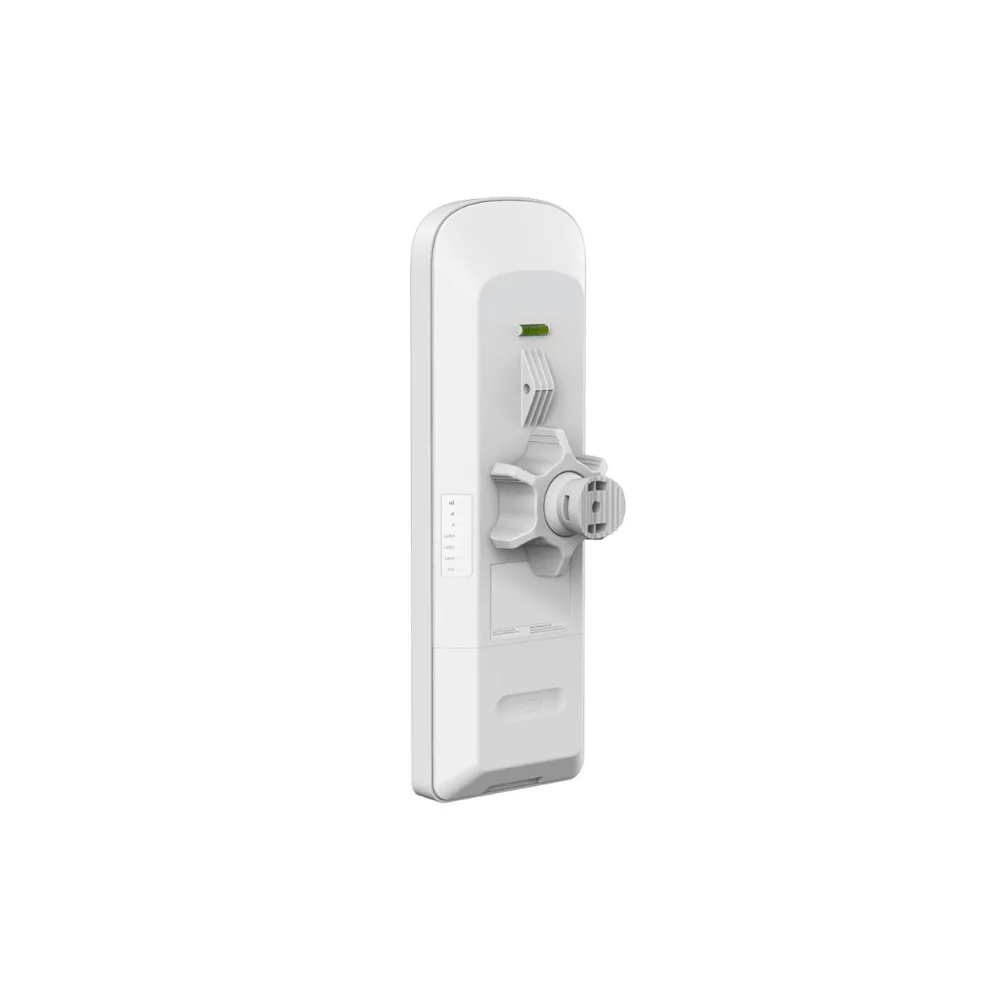

The Ruijie Reyee RG-EST450G is a professional outdoor wireless bridge designed to provide reliable long-distance wireless connectivity between buildings, sites and network locations where running physical network cables is difficult or impractical. It is particularly suitable for CCTV surveillance, campus networks, farms, factories, warehouses, buildings and other outdoor networking applications.
The RG-EST450G operates on the 5GHz band using Wi-Fi 5 technology and provides a wireless data rate of up to 867Mbps. Its built-in 15dBi directional antenna provides a wide 120° horizontal and 13° vertical beamwidth, allowing the unit to serve as a PTMP station while maintaining focused wireless coverage.
For long-distance wireless networking, the RG-EST450G supports a maximum bridge distance of 5km. Ruijie’s reference performance shows approximately 200Mbps at 1km, 130Mbps at 3km and 80Mbps at 5km using HT40, with actual performance depending on installation conditions, interference, alignment and regulatory requirements.
The bridge includes three Gigabit Ethernet ports, providing flexible wired connectivity for network equipment such as IP cameras, switches and other Ethernet devices. This makes the RG-EST450G particularly useful in surveillance and remote-site deployments where multiple wired devices need to be connected through a wireless link.
The RG-EST450G supports TDMA technology, which helps optimize wireless communication in outdoor bridge deployments and can improve efficiency when multiple remote connections are operating simultaneously. It also supports one-touch pairing for PTMP mode, simplifying the initial configuration of compatible bridge devices.
- 5GHz outdoor wireless bridge
- Wi-Fi 5 / 802.11ac
- Up to 867Mbps on 5GHz
- Up to 1166Mbps combined theoretical wireless rate
- 15dBi built-in directional antenna
- 120° horizontal / 13° vertical beamwidth
- Up to 5km bridge distance
- Supports PTP and PTMP deployments
- 3 × Gigabit Ethernet ports
- 2×2 MIMO on 5GHz
- 1×1 SISO on 2.4GHz management radio
- TDMA technology
- One-touch PTMP pairing
- Ruijie Cloud management
- SON self-organizing network
- Spectrum scanning and alignment tools
- SNMPv1/v2c/v3
- IP55 weatherproof design
- 12V DC / Passive PoE / 802.3af/at power
- Operating temperature from -30°C to +65°C
- Ideal for CCTV, farms, factories, campuses and building-to-building links
- 3-year warranty
