Description

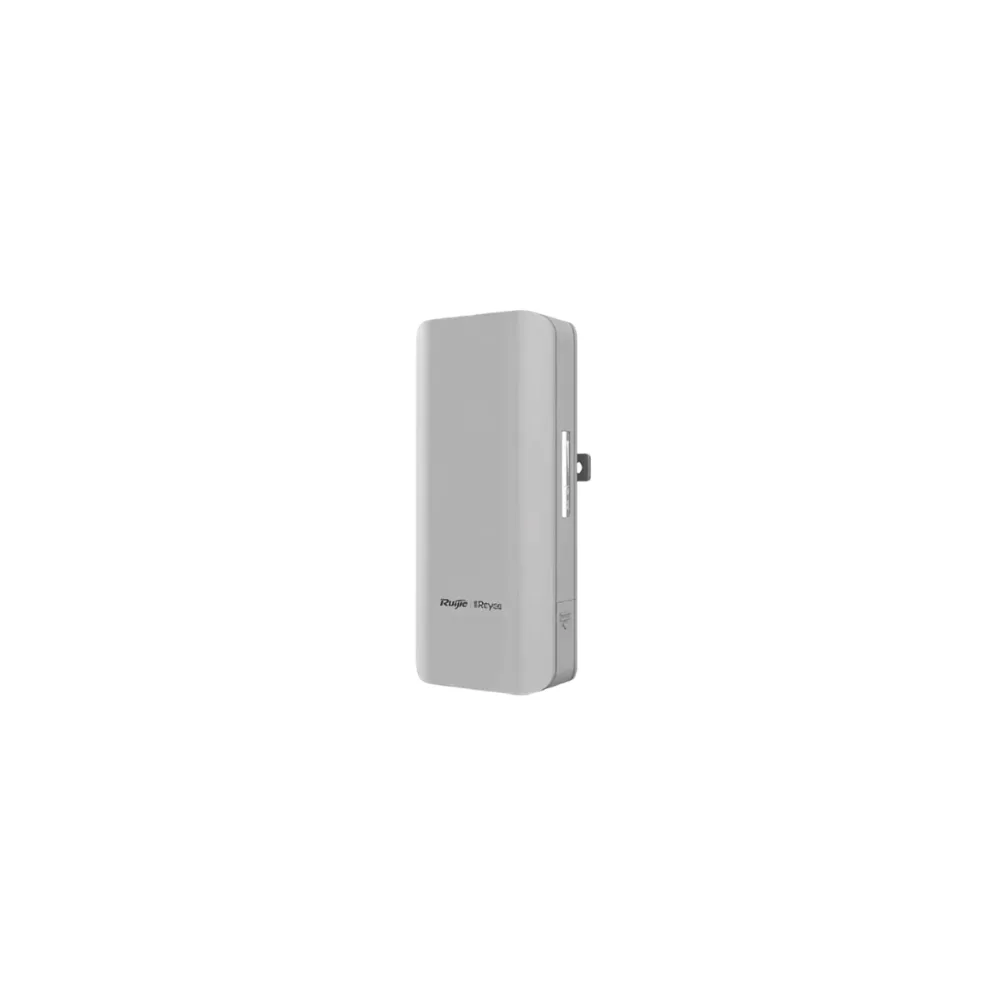

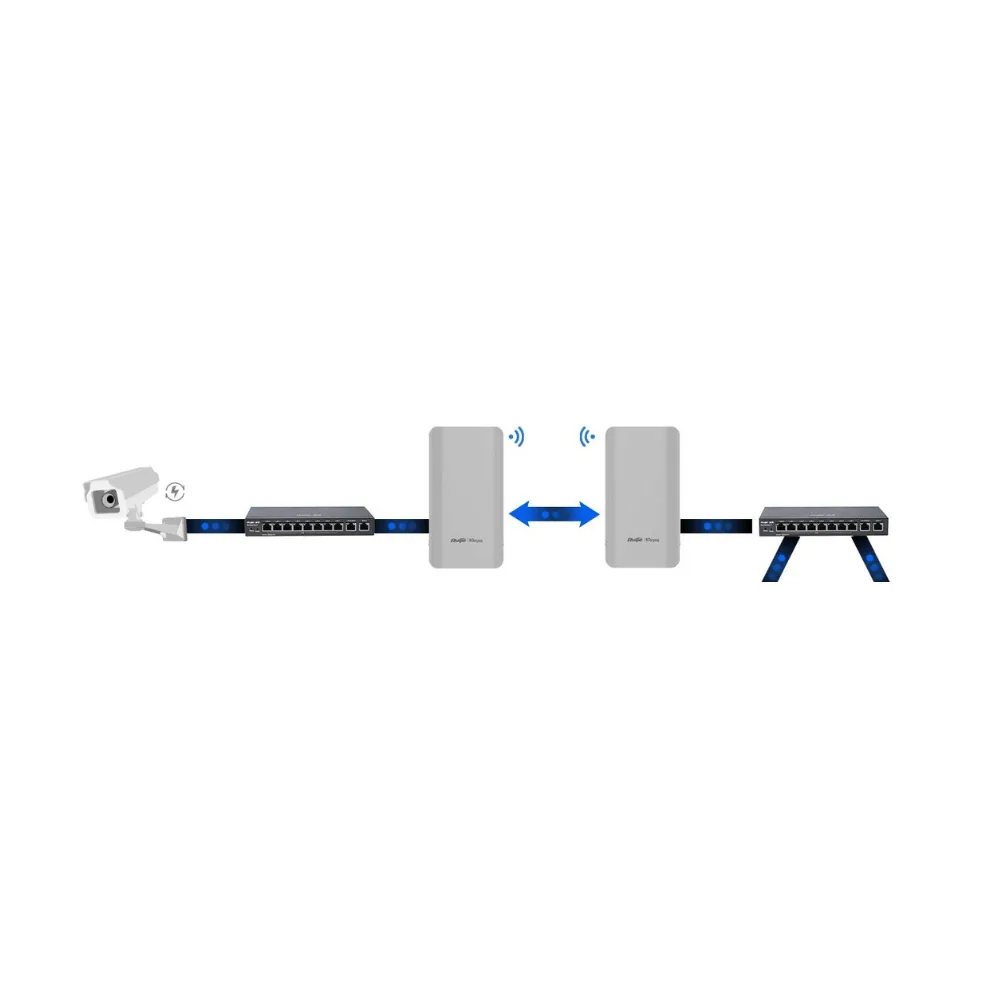

The RG-EST310 V2 provides a practical wireless networking solution where running Ethernet or fiber cabling is difficult or expensive. Operating on the 5GHz 802.11ac standard, it uses dual-stream 2×2 MIMO technology and a built-in directional antenna to establish stable wireless links between buildings, CCTV locations, elevators and other remote network points.
Ruijie specifies a recommended bridging distance of 1 km, with reference performance of up to 80 Mbps at 1 km using HT40. Under suitable conditions, the platform can support longer links, with Ruijie’s reference table showing performance up to 2 km.
The bridge is factory-paired, allowing simple deployment without complex initial configuration. It supports automatic re-bridging after power restoration and can be managed through the Ruijie/Reyee ecosystem. Its IP54 enclosure, -30°C to +55°C operating range and V0 flame-retardant construction make it suitable for outdoor installations.
- 5GHz outdoor wireless bridge
- Wi-Fi 5 / IEEE 802.11ac
- Dual-stream 2×2 MIMO
- Up to 867 Mbps wireless rate
- Recommended transmission distance up to 1 km
- Reference throughput up to 80 Mbps at 1 km
- Built-in 10 dBi directional antenna
- Supports PTP / PTMP
- Factory-paired for easy deployment
- Automatic re-bridging after power restoration

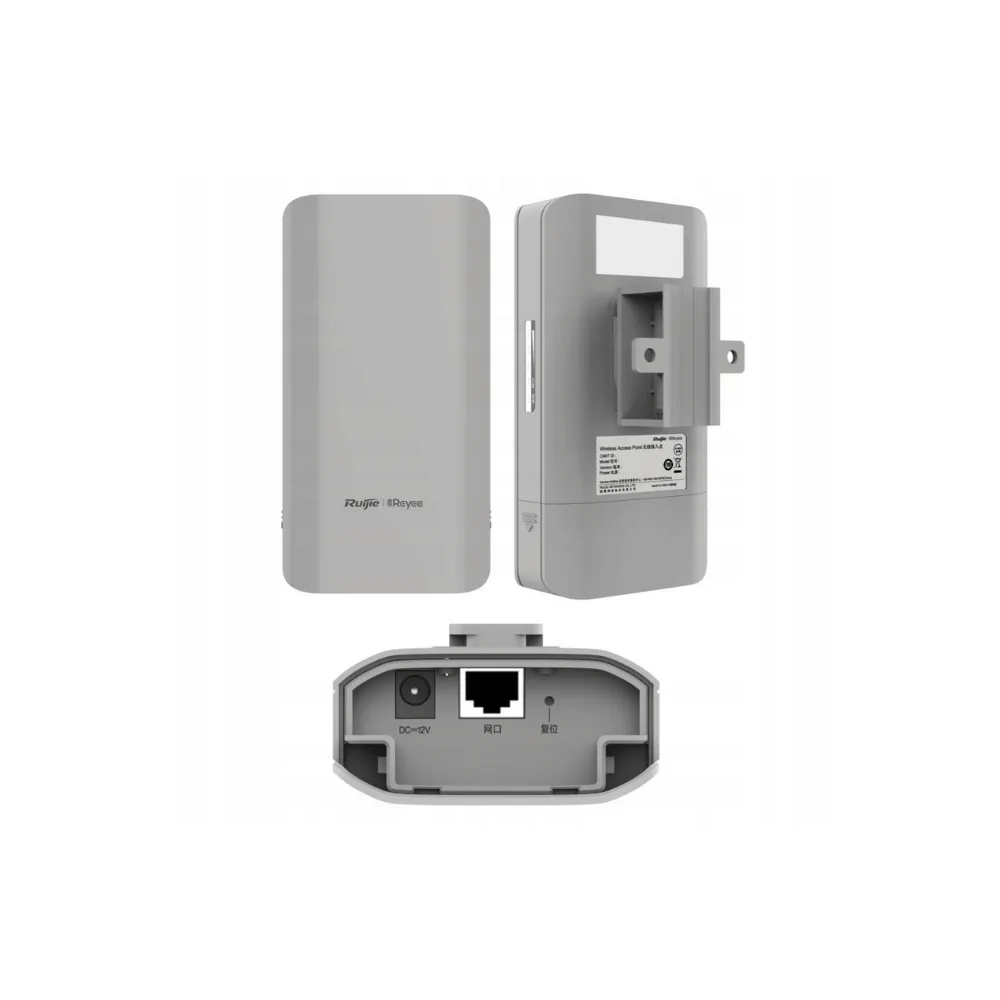

- 1 × 10/100 Mbps Fast Ethernet port
- 24V passive PoE power
- IP54 weather protection
- -30°C to +55°C operating temperature
- Built-in lightning protection
- Wall or pole mounting
- Ruijie/Reyee app and web management
- Suitable for CCTV, elevator, building and campus connectivity
