Description
The Ruijie Reyee RG-ES206GS-P is a compact and efficient 6-port Gigabit Smart Cloud Managed PoE+ Switch designed for small and medium-sized business networks, CCTV installations, retail environments, offices, hospitality and other applications where reliable Gigabit connectivity and PoE power are required.

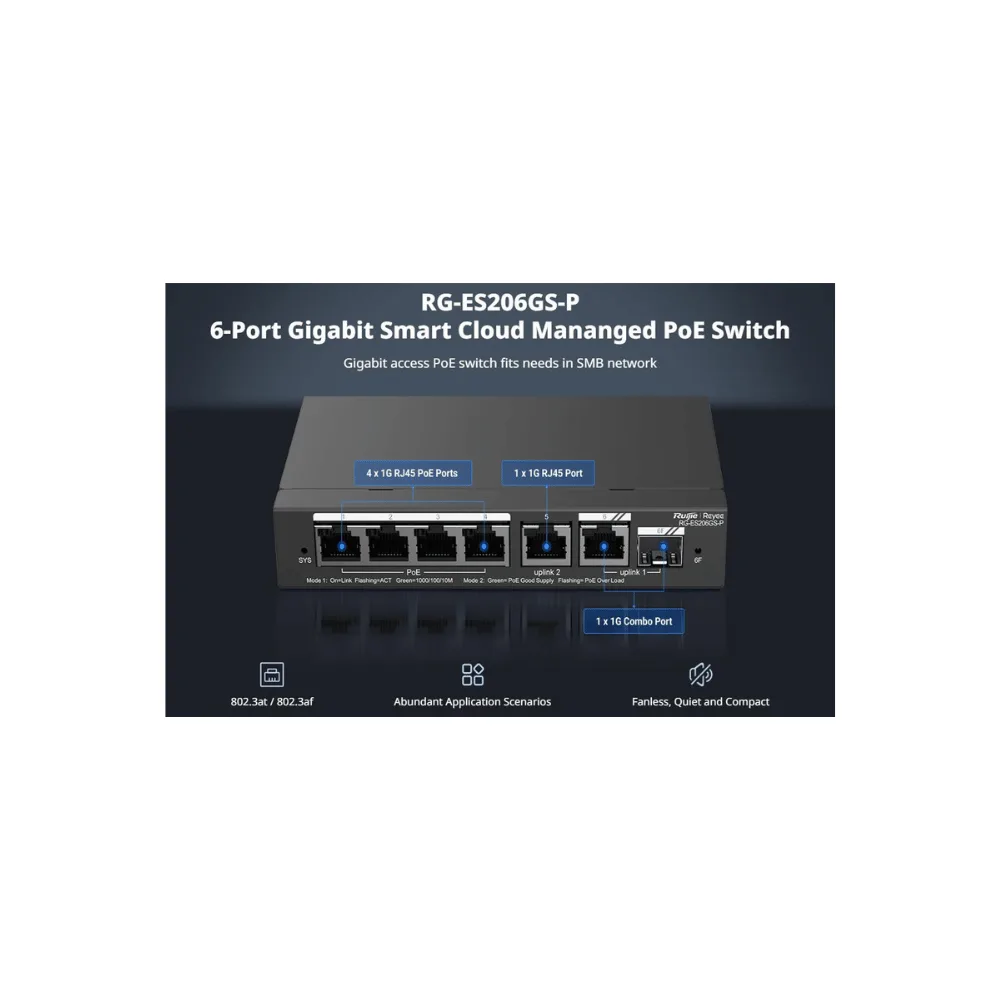

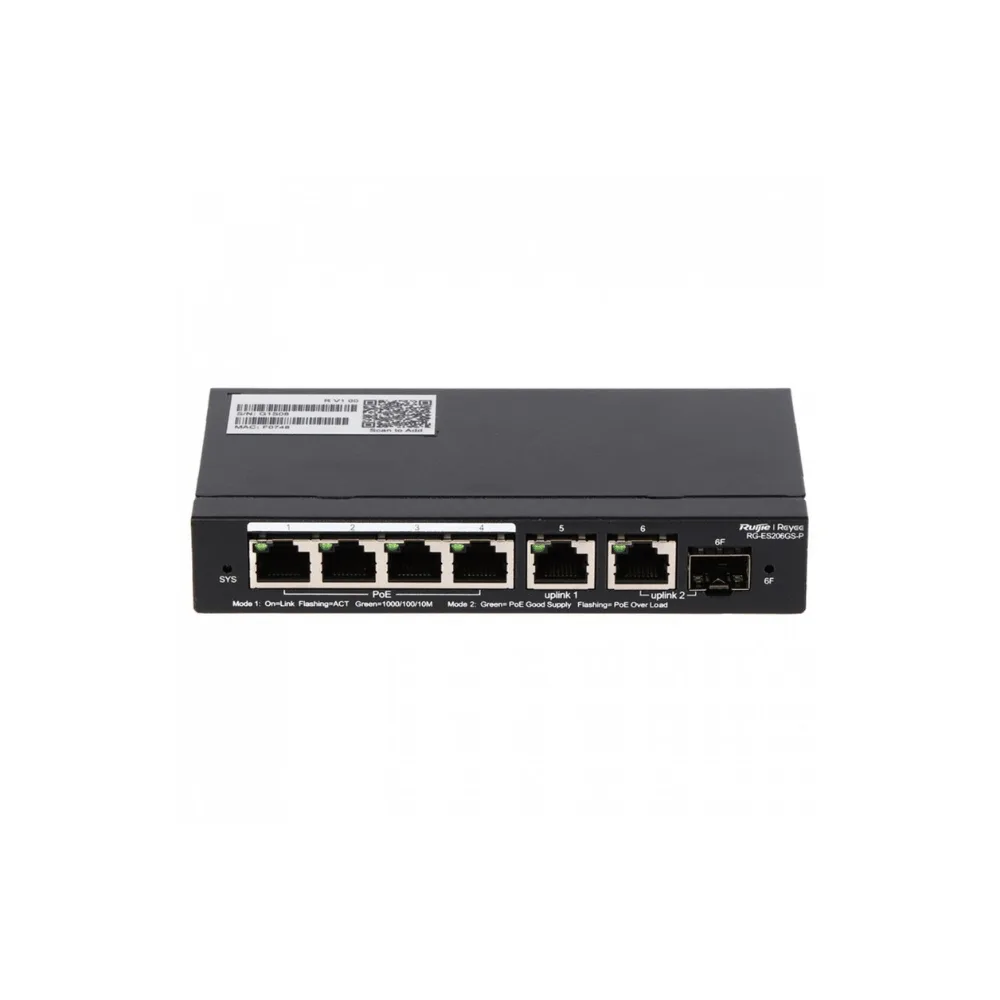

The switch provides six 10/100/1000BASE-T Gigabit Ethernet ports, with four ports supporting IEEE 802.3af/at PoE+ for powering compatible IP cameras, wireless access points, VoIP phones and other PoE-enabled devices. It provides a total 54W PoE power budget, making it suitable for smaller surveillance and networking deployments.
For uplink flexibility, the RG-ES206GS-P includes a 1GE Combo port, supporting either Gigabit RJ45 or Gigabit SFP connectivity. This allows the switch to be connected to copper or fiber-based network infrastructure depending on the installation requirements.
The RG-ES206GS-P is designed with CCTV applications in mind and supports IP camera/NVR recognition, intelligent PoE adaptation, PoE watchdog, individual port reboot and extended transmission modes up to 250 meters in supported configurations. Automatic loop prevention helps maintain network connectivity when a network loop occurs.
- 6 × Gigabit Ethernet ports
- 4 × Gigabit PoE+ ports
- IEEE 802.3af/at PoE support
- 54W total PoE budget
- 1 × Gigabit Combo port
- RJ45 or SFP uplink flexibility
- Layer 2 smart cloud management
- Ruijie Cloud remote management
- IP Camera/NVR recognition
- Automatic loop prevention
- Intelligent PoE adaptation
- PoE watchdog
- Individual port reboot
- VLAN configuration through Ruijie Cloud App
- Transmission up to 250m in supported extended mode
- Fanless, quiet and compact design
- 3-year warranty
