GRANDSTREAM GRP2650 PROFESSIONAL IP PHONE 14 LINES 16 SIP ACCOUNTS 5″ COLOR DISPLAY WI-FI 6 BLUETOOTH POE

Overview

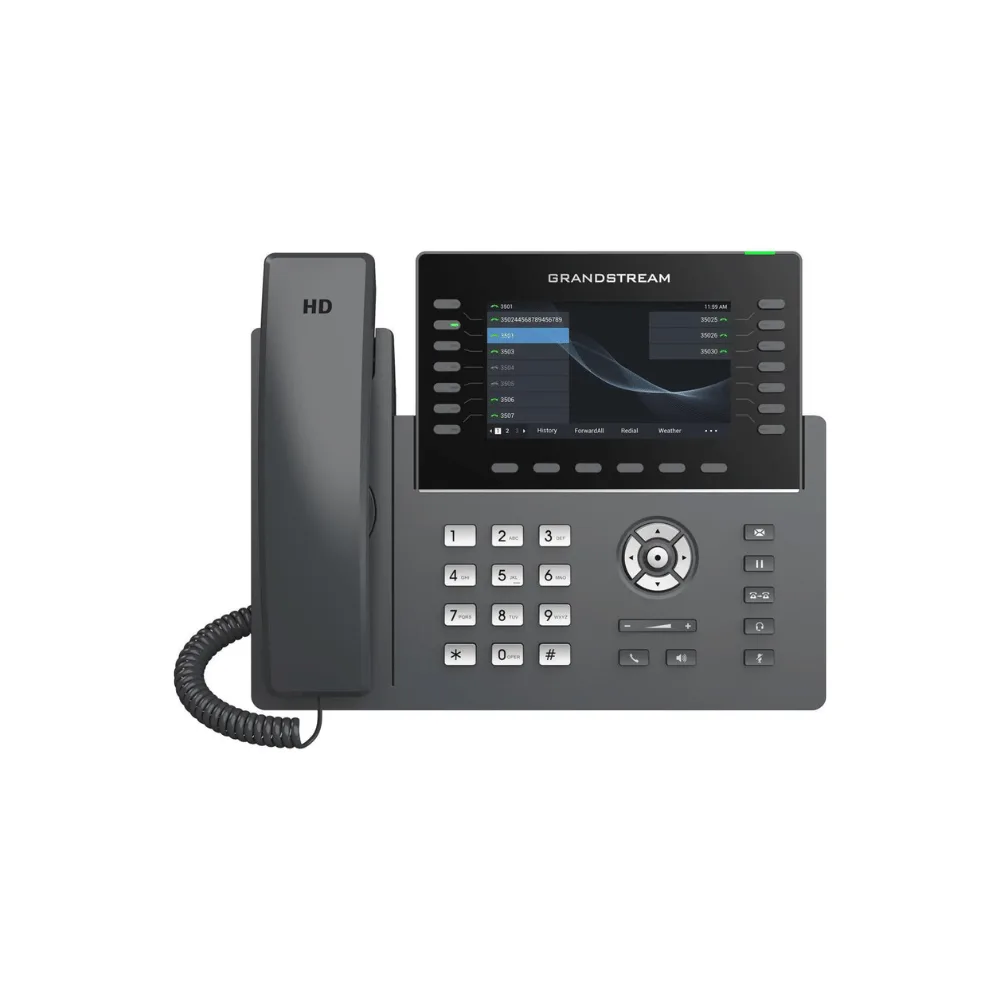

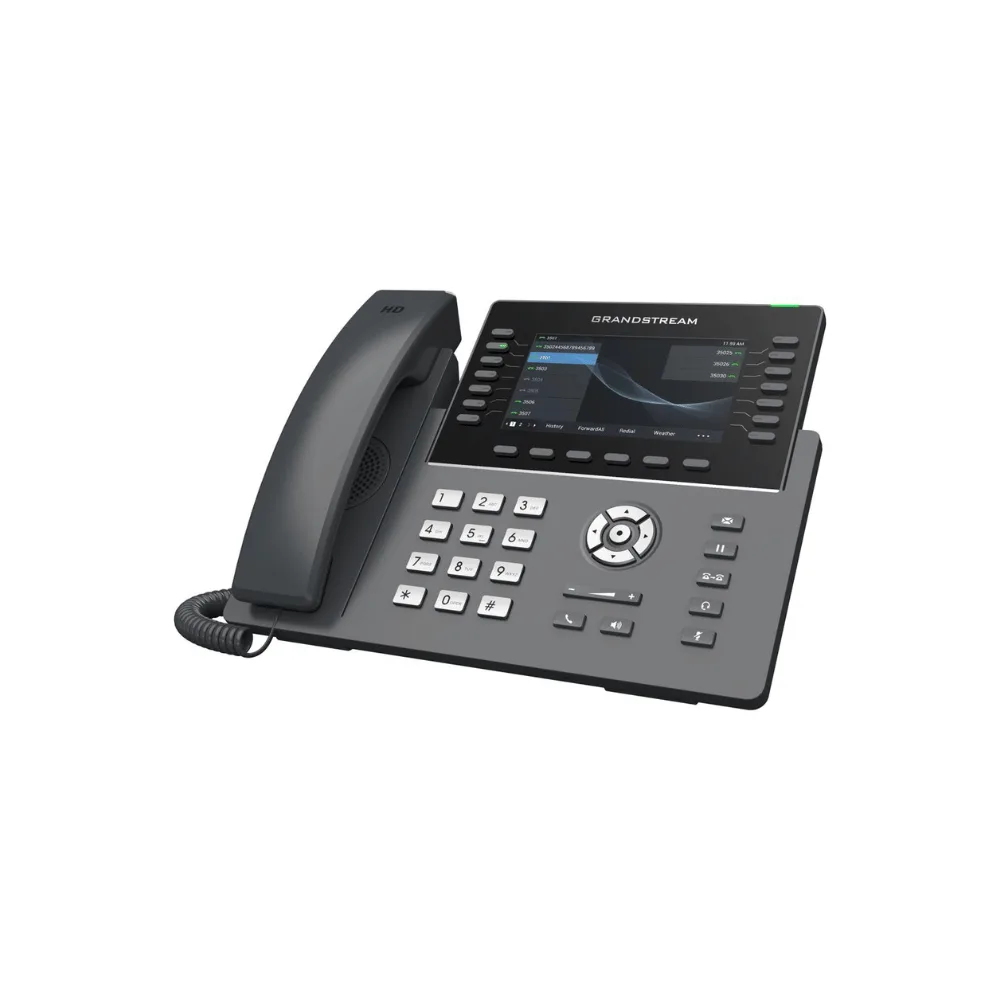

The Grandstream GRP2650 Professional IP Phone is a carrier-grade 14-line business IP phone designed for executives, receptionists, call-intensive professionals, enterprises, service providers, and other high-volume communication environments. It combines 14 line keys, up to 16 SIP accounts, 56 Virtual Multi-Purpose Keys (VPKs), a 5-inch 1280×720 colour display, integrated Wi-Fi 6, Bluetooth, dual Gigabit Ethernet ports, PoE, HD audio, and 5-way conferencing in a professional desktop phone.

Built for demanding business communications, the GRP2650 provides extensive programmable controls for managing multiple calls, extensions, contacts, and business functions. Its large high-resolution colour display provides a clear interface, while the 56 VPKs give users extensive access to programmable functions such as speed dial, BLF, call park, transfer, and other supported workflows.

The GRP2650 also supports Grandstream Device Management System (GDMS) for centralized provisioning, configuration, management, and monitoring. Enterprise-level security features including secure boot, dual firmware images, encrypted configuration data, TLS, SRTP, and 802.1X help make the GRP2650 suitable for professional and large-scale deployments.

Quick Specs

• Phone Type: Professional carrier-grade IP phone
• Line Keys: 14
• SIP Accounts: Up to 16
• VPKs: 56 Virtual Multi-Purpose Keys
• Display: 5-inch TFT colour LCD
• Display Resolution: 1280 × 720
• Wi-Fi: Integrated dual-band Wi-Fi 6, 2.4GHz and 5GHz
• Bluetooth: Integrated
• Ethernet: Dual 10/100/1000 Mbps Gigabit Ethernet ports
• PoE: Integrated IEEE 802.3af
• Audio: HD handset and full-duplex speakerphone
• Conference: 5-way audio conferencing
• Headset: RJ9 with EHS support and integrated USB headset support
• Extension Module: Grandstream GBX20
• Management: GDMS, TR-069 and encrypted XML provisioning
• Security: Secure boot, dual firmware images, AES-256 encrypted configuration, TLS, SRTP and 802.1X

Why Buy

• 14-Line Professional Phone: Manage a high volume of business calls with 14 line keys and support for up to 16 SIP accounts.
• 56 VPKs: Access a large number of programmable functions, contacts, BLF and speed-dial functions directly from the phone interface.
• Large 5-Inch Display: The 1280 × 720 TFT colour LCD provides a spacious and clear user interface.
• Wi-Fi 6 Connectivity: Connect to compatible 2.4GHz or 5GHz wireless networks without requiring a dedicated wired network connection to the phone.
• Bluetooth: Integrated Bluetooth provides additional wireless connectivity for supported accessories and functions.
• Gigabit Ethernet: Dual 10/100/1000 Mbps Ethernet ports provide high-speed wired network connectivity.
• PoE: Integrated 802.3af PoE simplifies installation by allowing power and network connectivity over Ethernet.
• HD Audio: HD handset and full-duplex speakerphone audio provide clear communication for everyday business calls.
• 5-Way Conferencing: Host multi-party audio conferences directly from the phone.
• Enterprise Management: GDMS provides centralized configuration, provisioning, management, and monitoring.
• Business-Grade Security: Secure boot, encrypted configuration, TLS, SRTP, and 802.1X provide multiple layers of security.
• Expansion Ready: Support for the GBX20 extension module provides additional flexibility for high-volume users.

Insights

The GRP2650 is designed for users who need more than a basic VoIP endpoint. With 14 line keys and up to 16 SIP accounts, it provides the capacity required to manage multiple business communication identities and call-handling workflows from a single desktop phone.

One of the GRP2650’s major advantages is its 56 VPK capacity. These Virtual Multi-Purpose Keys provide extensive programmable access to supported functions such as BLF, speed dial, call park, transfer, and other business communication features. This makes the phone particularly useful for receptionists and users who regularly monitor numerous extensions.

The 5-inch 1280 × 720 colour display provides a significantly larger visual workspace than many conventional business IP phones. Six XML-programmable context-sensitive softkeys, navigation controls, and dedicated function keys provide additional flexibility for everyday operation.

Connectivity is equally versatile. The GRP2650 provides dual Gigabit Ethernet ports with integrated PoE, Wi-Fi 6, and Bluetooth. Wi-Fi 6 supports dual-band 2.4GHz and 5GHz operation on hardware version 5.0 and above, giving organizations an additional wireless networking option.

For organizations deploying multiple endpoints, GDMS provides centralized device provisioning, configuration, management, and monitoring. This makes the GRP2650 particularly suitable for enterprise, service-provider, and other large-scale VoIP deployments.

Key Features

14 Lines and Up to 16 SIP Accounts

The GRP2650 provides 14 line keys with support for up to 16 SIP accounts, making it suitable for users who need to manage multiple business lines and SIP registrations.

56 Virtual Multi-Purpose Keys

The phone provides 56 VPKs for programmable business functions. VPKs can support functions such as BLF, speed dial, call park, transfer, and other supported modes.

5-Inch 1280 × 720 Colour Display

The 5-inch TFT colour LCD provides a 1280 × 720 resolution for a clear and spacious phone interface.

Integrated Wi-Fi 6

The GRP2650 features integrated dual-band Wi-Fi 6 supporting 2.4GHz and 5GHz wireless connectivity. Wi-Fi 6 support is available on hardware version 5.0 and above.

Integrated Bluetooth

Integrated Bluetooth provides wireless connectivity for supported accessories and compatible business communication functions.

Dual Gigabit Ethernet Ports

The phone features two switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports for high-speed network connectivity.

Integrated PoE

With integrated IEEE 802.3af PoE, the GRP2650 can receive power through a compatible Ethernet connection, helping simplify desktop installation.

HD Audio and Noise Shield Technology

The GRP2650 features an HD handset and full-duplex speakerphone with wideband audio support. Noise Shield technology helps minimize unwanted background noise during conversations.

5-Way Audio Conferencing

The phone supports 5-way audio conferencing, allowing users to conduct multi-party business calls directly from the device.

RJ9 and USB Headset Support

The GRP2650 includes an RJ9 headset jack with EHS support for compatible Plantronics headsets as well as integrated USB headset support.

GBX20 Expansion Module Support

The GRP2650 supports the Grandstream GBX20 extension module, providing an expansion option for users who need additional programmable controls.

GDMS Centralized Management

Grandstream Device Management System (GDMS) provides a centralized interface for configuring, provisioning, managing, and monitoring Grandstream devices and deployments.

Enterprise-Level Security

Security features include secure boot, dual firmware images, AES-256 encrypted configuration files, TLS, SRTP, 802.1X, and MD5/MD5-sess authentication.

Swappable Faceplate

The swappable faceplate allows organizations to customize the phone’s appearance and supports easy logo customization.

Use Cases

• Reception Desks: Manage multiple lines, extensions, frequent contacts, and call-handling functions from one high-capacity endpoint.
• Executive Offices: Provide a premium desktop communication solution with a large colour display, HD audio, Wi-Fi 6, and Bluetooth.
• Call-Intensive Users: Handle multiple SIP accounts and business calls while using VPKs for frequently accessed functions.
• Business Offices: Deploy a feature-rich IP phone with Gigabit Ethernet, PoE, wireless connectivity, and enterprise security.
• Enterprise Deployments: Use GDMS for centralized provisioning, configuration, monitoring, and management.
• Service Providers: Deploy a carrier-grade SIP endpoint designed for broad interoperability and large-scale deployments.
• High-Volume Communication: Combine 14 lines, 16 SIP accounts, 56 VPKs, and 5-way conferencing for demanding communication workflows.
• Wireless VoIP Deployments: Take advantage of integrated Wi-Fi 6 where supported wireless networking is preferred.

Is It Right?

• Yes, if: You need a professional IP phone with 14 lines and support for up to 16 SIP accounts.
• Yes, if: You need extensive programmable controls for BLF, speed dial, call park, transfer, and other supported functions.
• Yes, if: A large 5-inch 1280 × 720 colour display is important for your workflow.
• Yes, if: You want Wi-Fi 6, Bluetooth, Gigabit Ethernet, and PoE in the same business phone.
• Yes, if: You are deploying phones in an enterprise or service-provider environment where centralized GDMS management is useful.
• Consider another model if: You only need a basic IP phone with a small number of lines and do not require extensive VPKs or enterprise features.
• Consider another model if: Your users have very light calling requirements and would not benefit from the GRP2650’s larger display and high-capacity programmable interface.

Specifications

Compatibility

The Grandstream GRP2650 is designed for broad interoperability with SIP-based communication platforms, IP-PBX systems, hosted VoIP services, and compatible third-party SIP platforms. It supports standard SIP protocols and common VoIP networking technologies for business deployments.

The phone supports RJ9 headsets with EHS functionality for compatible Plantronics headsets, integrated USB headset support, Bluetooth connectivity, and the Grandstream GBX20 extension module.

For enterprise and service-provider deployments, the GRP2650 supports GDMS for centralized device configuration, provisioning, management, and monitoring.

Setup

Connect the GRP2650 to your network using either Gigabit Ethernet or compatible Wi-Fi. If your network supports IEEE 802.3af PoE, the phone can receive power through the Ethernet connection. Alternatively, the included 12V power adapter can be used.

Configure the required SIP account credentials, network settings, and phone preferences through the phone interface or an approved provisioning platform. For multiple-device deployments, GDMS, TR-069, or AES-encrypted XML provisioning can be used to simplify configuration and ongoing management.

Once connected, configure the VPKs, line keys, contacts, headset settings, and other supported functions according to the user’s requirements. Compatible GBX20 expansion modules can also be added where additional programmable controls are required.
